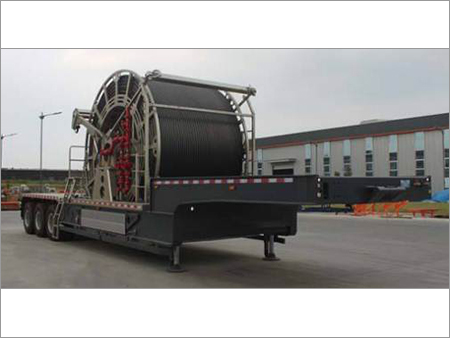

Coiled Tube

Coiled Tube
Coiled Tube
Product Code : 03
Product Description

Coiled Tubing

Coiled tubing mainly applies to workover, logging, drilling, completion and gathering transmission field etc.

Coil tubing

  • OD: 1"~3.5" (25.4~88.9mm)
  • WT: 0.075"~0.3"(1.9~7.62mm)
  • Individual Length: Max 8000m
  • Grade: CT55~CT110 (Min. Yield strength: 379~758Mpa) CT55,CT70,CT80,CT90,CT100,CT110

5. Reel Dia.:3800mm max.

Not only possesses good corrosion resistance and fatigue test results is superior to similar imported coiled tubing, but also its comprehensive performance reaches the level of abroad similar products, and can completely replace imported coiled tubing to meet the demand of petroleum industry in China.

Our coiled tubing can fully meet the requirements of removing sand and plugs, replacement of mud slurry as well as acidification and fluid discharging operations etc.

  •  O.D.: 25.4mm~88.9mm
  • Length:Max. 8000m
  • Steel grade: CT55-CT110
  • Specification: API Spec 5ST

Size of coiled tubing

O.D.

W.T.

inch

1"

1.25"

1.5"

1.75"

2"

2.375"

2.625″

2.875"

3.25"

3.5"

inch

mm

25.4

31.75

38.1

44.45

50.8

60.325

66.675

73.025

82.55

88.9

0.075"

1.905





















0.080"

2.032





















0.083"

2.108





















0.087"

2.210





















0.095"

2.413





















0.102"

2.591





















0.109"

2.769





















0.118"

2.997





















0.125"

3.175





















0.134"

3.404





















0.145"

3.683





















0.156"

3.962





















0.175"

4.445





















0.188"

4.775





















0.204"

5.182





















0.224"

5.690





















0.250"

6.350
