Hollow Sucker Rod Electric Heating Device

Hollow Sucker Rod Electric Heating Device
Hollow Sucker Rod Electric Heating Device
Product Code : 04
Product Description

We have gained a powerful position in the market by providing Hollow Sucker Rod Electric Heating Device. Our offered Hollow Sucker Rod Electric Heating Device is provided with many features like this device use the electric heating sucker rod to heat the crude oil in the tail pipe under pump directly which in turn reduce viscosity and increases the liquidity, the traveling valve is open and closed forcibly to prevent airlock, reduce the viscosity in the electric heating way which is suitable for the marginal area oil exploitation etc.

Hollow Sucker Rod Electric Heating Device for Heavy Viscosity Oil

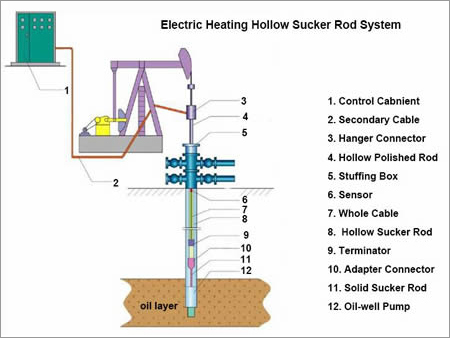

Sketch map of hollow sucker rod electric heating device.

Introduction

In the high viscosity, pour point and wax content situations, the crude oil has the difficult of lifting and flowing into the pump, the sucker rod bears too heavy load to downstream. So, the common sucker rod cannot play a good performance in the late of oil exploitation. There is a new device which can solve these problems - hollow sucker rod electric heating device.

Device structure

The hollow rod electric heating device is mainly combined with three parts.

Hollow sucker rod: Including the adapter connector, terminator, pony rod, polished rod, hanger connector and stuffing box.

Heating cable

Power unit. Medium frequency power supply control cabinet.

Classification

The hollow sucker rod electric heating device can be divided into pumping unit well electric heating device, subsurface pump hollow sucker rod electric heating device and screw pump hollow sucker rod electric heating device.

Pump unit hollow sucker rod electric heating device

Technical data

Hollow sucker rod

Rod Outer Diameter

34mm

36mm

42mm

Rod Thickness

5.0mm, 5.5mm

5.5mm, 6.0mm, 6.5mm

6.0mm

Coupling Outer Diameter

50mm

50mm

60mm

Thread Size

1-9/16"

1-9/16"

1-7/8"

Grade

D

Heating cable

Heating core sectional area mm2

3 × 8.4mm2

Outer diameter of cable

18 - 20mm

Outer protect layer

Stainless steel wire armor weave

Withstand voltage

≥ 2500V

Length

Underground length + ground length

Temperature-resist grade

Long time working temperature: 200°C (C Grade)

Electrical performance

Insulation resistance > 50MΩ, AC withstand voltage test 2500V

Tensile strength

≥ 50Mpa

Electric control cabinet

Rated power KVA

35

50

75

100

135

Input voltage

Three phase 380V ± 5%50HZthree phase 440V ± 5%, 60HZ

Output voltage

Single phase160 - 900 is available.

Power factor

COS Ø ≥ 0.95

Three phase imbalance percent

≤ 10%
